70KW Optical Fiber Cable Machine For Dry PBT Loose Tube Production Line

Name: 70KW Optical Fiber Cable Machine For Dry PBT Loose Tube Production Line
Brand: I-suntop
Price: 1 USD

70KW Optical Fiber Cable Machine For Dry PBT Loose Tube Production Line Manufactures

Brand Name : I-suntop

Model Number : I-50

Certification : SGS

Place of Origin : China

MOQ : 1set

Price : By negotiation

Payment Terms : L/C,T/T

Supply Ability : Up to different machine

Delivery Time : Min.50working days

Packaging Details : Plastic film+wooden box

Extrusion Material : PBT,PP

Design Speed : Max.800m/min

No of fiber : 12

excess loss : <=0.02dB/km(single mold optical fiber)

Application : manufacturing of dry PBT loose tube

Warranty : 18month

Power : 70KW, AC380V ±10% 50HZ three-phase five-wire

Inverter : Danfoss

Contact Now

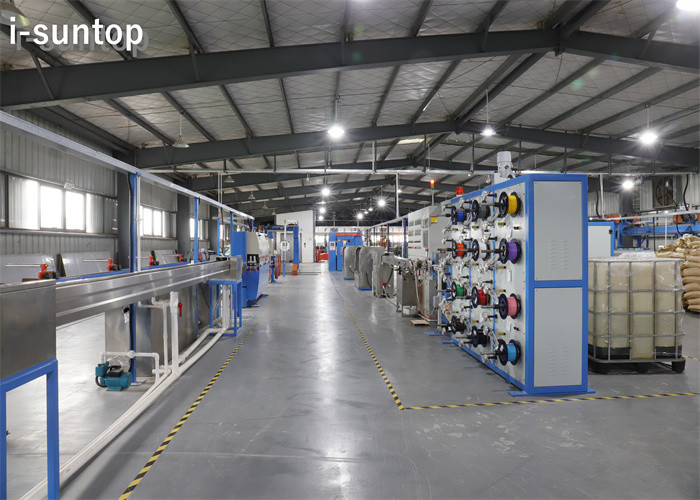

Fiber Optic Cable Machine For Dry Loose Tube Production Line

i-suntop fiber optic cable machine 20220228.pdf

1. Description of Fiber Optic Cable Machine For Dry Loose Tube Production Line:

Mainly Application for 2-12 cores fiber optic loose tube without jelly.

2. Technical parameters of Fiber Optic Cable Machine For Dry Loose Tube Production Line:

Model type	Φ50
Applicable material	Modified PP&PBT
Pay-off bobbin size	Φ23616010825.4mm/φ26516022525.4mm
Cores	1-12
Pay-off tension	0.4N-1.5N±0.05N
Loose tube OD	Φ1.6-3.0mm
Designed speed	Max.800m/min
Processing line speed	Max.500m/min
Take-up bobbin	PN630-800mm
Collateral loss	≤0.02dB/km
Line length	≤36m4.5m3.5m
Power	70KW, AC380V ±10% 50HZ three-phase five-wire

3. Line Configuration of Fiber Optic Cable Machine For Dry Loose Tube Production Line(High speed):

Items	Qty.
12heads fiber pay off	1set
Electrostatic device removed	1set
Jelly filling device	1set
50 extruder	1set
Dryer +hopper 50kg	1set
IPC+PLC program control systerm	1set
4 m mobile hot water tank + hot water tank	2sets
Ф630mm single wheel capstan+Warm water spraying device	1set
Ф630mm single wheel capstan+cold water spraying device	1set
laser diameter gauge	1set
Take up Tension dancer	1set
dual-shaft take-up 630-800mm	1set

4. Other related equipments:

A. optical cable production line

B. optical cable testing equipments

C. optical cable auxiliary equipments

E. Electric wire and cable equipments

F. Electric wire and cable testing equipments

G. Electric wire and cable auxiliary equipments

H. Copper wire drawing machine

I. Stranding machine

J. Braiding machine

L. Armored Monocoil Tubing Machine
