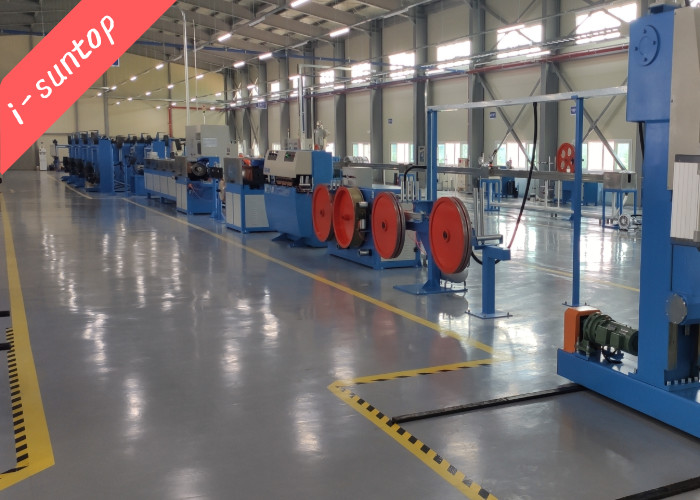

1200/12 Photoelectric Composite Cable SZ Stranding Production Line
i-suntop fiber optic cable machine 20220228.pdf
1. Application for 1200/12 Photoelectric Composite Cable SZ Stranding Production Line:
The line is used for SZ stranding of loose tube elements Ф1.8-Ф4.0mm ,power wire from 1.5-10mmsquare.
2. Advantages for 1200/12 Photoelectric Composite Cable SZ Stranding Production Line:
A. Pay-off is the motorized take-up device, the tension of the pay-off is stable and reliable, and the maximum number of loose tubes can reach 12.
B. SZ stranding is full differential structure and the stranding pitch is stable.
C. The tying yarn adopts the double-head single-point two-way cross-twisting method, and the yarn tension is controlled by segmentation, which is stable and reliable.
D. The production line has sound and light alarms such as tension overrun, release line breakage, and water blocking belt breakage.
E,International industrial computer technology control system with high degree of automation, it can be linked with MES, ERP systems, real time tracking and managing production.
F. The main control systems and components adopt international famous brands, and the production line has high stability and reliability.
3. Specification of 1200/12 Photoelectric Composite Cable SZ Stranding Production Line:
| structure speed | Max.50m/min |
| Strength member | Ф1mm～Ф12mm |
| Max.cable diameter after stranding | Ф20mm |
| No of loose tube/power wire pay-off reels | 12 |
| Specification of loose tube pay-off reels | PN800-1200mm |
| SZ twisting pitch | 50mm-800mm |
| SZ reverse angle | max: 1800rpm |
| The maximum speed of embossing heads | max: 4000rpm |
| Embossing pitch | 20mm-500mm |
| Additional loss | ≤ 0.02db / km (sm fiber) |
| Power supply requirements | 55KW, AC380V ±10% 50HZ three-phase five-wire |
4.Line Configuration for 1200/12 Photoelectric Composite Cable SZ Stranding Production Line
| Items | Qty. |
| 800-1250mm active pay off | 1set |
| Φ800 tension unit | 1set |
| Φ800-1200mm loose tube/copper wire Pay-off | 12sets |
| Steel wire guiding device | 1set |
| Jelly filling device | 1set |
| Cable cores collecting device | 1set |
| SZ oscillator | 1set |
| Dual wheel concentric cross-binder | 1set |
| Water blocking tape pay-off | 1set |
| Single wheel concentric cross-binder | 1set |
| 800 double wheel Capstan | 1set |
| 800 tension device | 1set |
| 800-1600mm take up ( ground gantry type option available) | 1set |
| IPC+PLC program electricity control cabinet | 1set |
