SZ Oscillator Type Electric Distribution Fiber Optic Cable Making Machine

Name: SZ Oscillator Type Electric Distribution Fiber Optic Cable Making Machine
Brand: I-suntop
Price: 1 USD

SZ Oscillator Type Electric Distribution Fiber Optic Cable Making Machine Manufactures

Brand Name : I-suntop

Model Number : I-70

Certification : SGS

Place of Origin : China

MOQ : 1set

Price : By negotiation

Payment Terms : L/C,T/T

Supply Ability : Up to different machine

Delivery Time : Min.50working days

Packaging Details : Plastic film+wooden box

Usage : manufacturing Distribution/Breakout Fiber Optic Cable

Design Speed : Max.120m/min

No of optical fiber pay-off reels : 4/6/12/24

excess loss after extrusion : 1550nm<=0.2dB/km(single mold optical fiber)

Warranty : 1.5year

Finished Outer diamter : Max.11.5mm

Contact Now

SZ oscillator Type Distribution/Breakout Fiber Optic Cable Production Line

i-suntop fiber optic cable machine 20220228.pdf

1. Description for Distribution/Breakout Fiber Optic Cable Production Line:

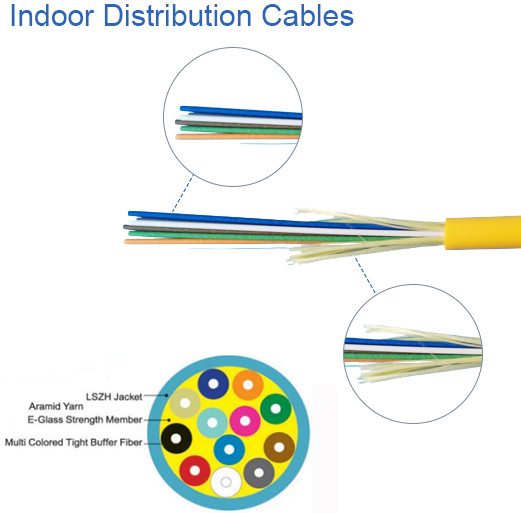

This fiber optic cable making machine sheathes indoor /outdoor disctribution multi cores optical cable, tactical fiber cable with PVC, LSZH, PE jacket, outer diameter is 11.5mm max..

SZ Oscillator Type Electric Distribution Fiber Optic Cable Making Machine

2. Technical parameters of Distribution/Breakout Fiber Optic Cable Production Line :

Extruder type65	×25 Extruder
Application material	LSZH,PVC,PE
Design speed	Max.120m/min
No of active pay-off reels	12/24 reels
Specification of tight buffered fiber pay-off reels	400mm
Core wire diameter	0.6/0.9/2.0
Pay-off tension of tight buffered fiber	1N-3N
Aramid yarn pay off(passive or active optional)	12/16/24
Take-up reels Specification	PN800 reel and PN1250 reel
excess loss after extrusion	1550nm<=0.02dB/km(single mold optical fiber)
Center height of machine	1000mm from background

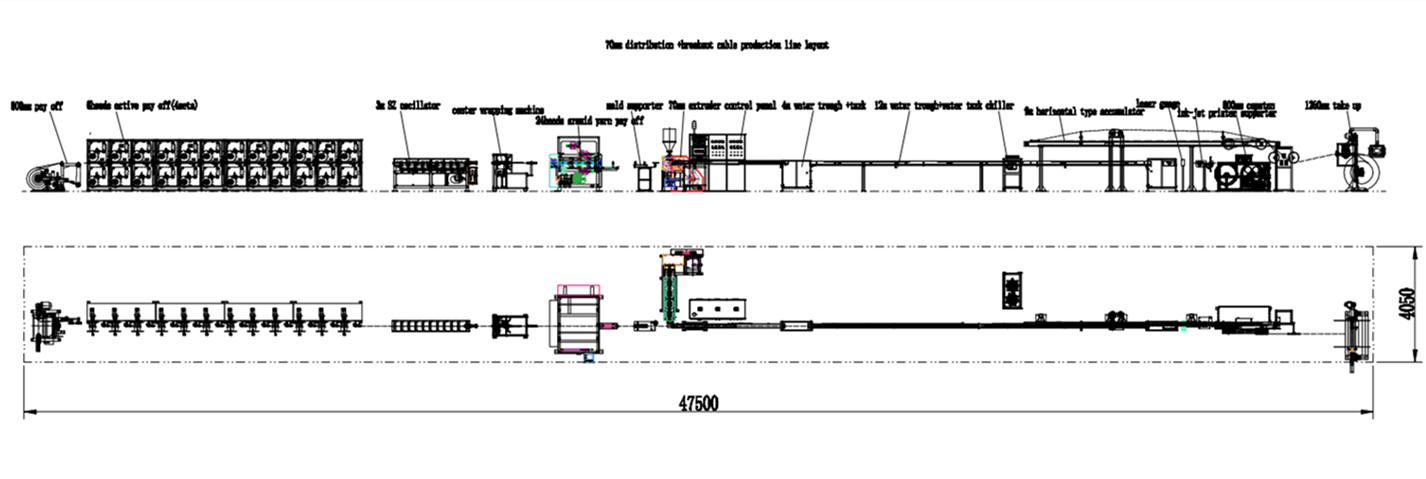

3. Line Configuration for Distribution/Breakout Fiber Optic Cable Production Line:

Items	Qty.
Φ800-1250 central strength-member pay-off	1set
24heads tight buffered fiber pay-off	1set
4 heads aramid yarn pay-off (motorized aramid yarn pay-off option available)	1set
SZ Oscillator	1set
Mobile mold supporting	1set
65 extruder	1set
75kg Dryer +hopper	1set
IPC+PLC program control systerm	1set
moving water trough and warm water tank	1set
fixed type cooling water trough and cooling water tank+chiller	1set
laser diameter gauge	1set
dual-wheel capstan	1set
φ800 dual-wheel tension unit	1set
800-1250mm shaftless longmen type take-up	1set

SZ Oscillator Type Electric Distribution Fiber Optic Cable Making Machine
