300mm 600r/Min FTTH Drop Automatic Wire Coiling Machine Indoor

Name: 300mm 600rMin FTTH Drop Automatic Wire Coiling Machine Indoor
Brand: I-suntop
Price: 1 USD

300mm 600r/Min FTTH Drop Automatic Wire Coiling Machine Indoor Manufactures

Brand Name : I-suntop

Model Number : I/400-630

Certification : SGS

Place of Origin : China

MOQ : 1set

Price : By negotiation

Payment Terms : L/C,T/T

Supply Ability : Up to different machine

Delivery Time : Min.30working days

Packaging Details : Plastic film+wooden box

Usage : For FTTH drop cable coiling and rewinding

Take up shaft rotation speed : 0-600r/min

Warranty : 18month

Voltage : 3-phase 5wire 380V 50HZ

additional loss : ≤ 0.02db / km (sm fiber)

Pay-off reel flange size : PN400-PN630

Coiler outer diameter : φ300mm

Coiler inner diameter : φ120mm

Contact Now

Indoor And Outdoor FTTH Drop Cable Coiling And Rewinding Machine

i-suntop fiber optic cable machine 20220228.pdf

1.Description for Indoor And Outdoor FTTH Drop Cable Coiling And Rewinding Machine:

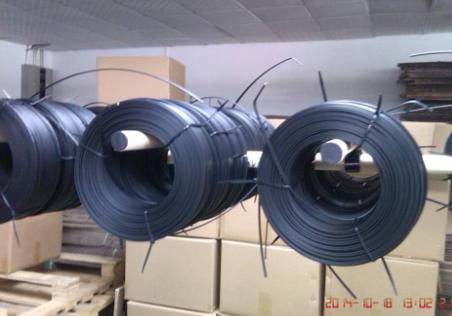

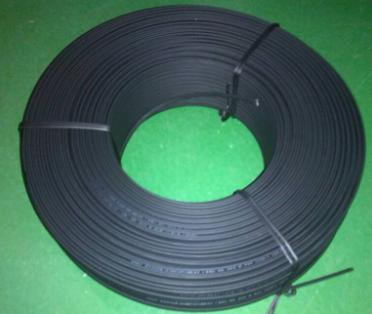

It is suitable for the coiling and winding, of FTTH butterfly cable, 12cores FTTH drop cable, etc.The equipment production efficiency is high, good traverse quality, remove the stitch is convenient.

2.Technical parameters of Indoor And Outdoor FTTH Drop Cable Coiling And Rewinding Machine:

Pay-off reel flange size	PN400-PN630
Take up shaft rotation speed	0-600r/min
Coiler outer diameter	φ300mm(can change according to customer requirement)
Coiler inner diameter	φ120mm(can change according to customer requirement)
Coiler width(thickness)	30-120mm(can adjust)
Suitable for	FTTH drop cable
Motor power	2.2KW
Meter counter	High precision (the number of meters can be adjustable) can be corrected by itself

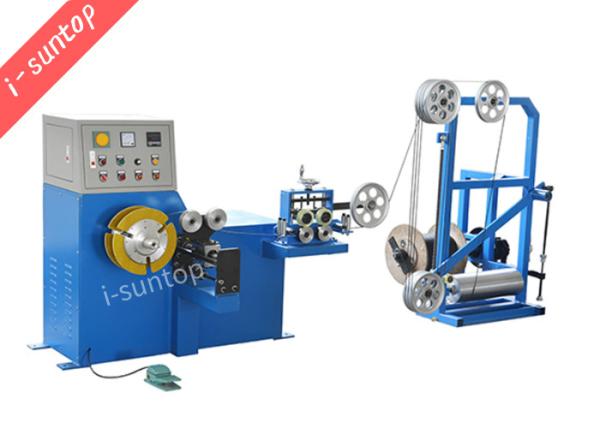

4.Line Configuration for Indoor And Outdoor FTTH Drop Cable Coiling And Rewinding Machine:

Items	Qty.
400-630mm Pay-off ( magnetic powder or motorized type option )	1set
Meter counter	1set
Coiling machine with coiling head	1set

300mm 600r/Min FTTH Drop Automatic Wire Coiling Machine Indoor

Product Tags:

600r/min automatic wire coiling machine

FTTH drop automatic wire coiling machine

FTTH drop cable coiling machine

300mm 600r/Min FTTH Drop Automatic Wire Coiling Machine Indoor Images
