High-Speed LAN Cable Extrusion Line | φ65+φ40 Tandem Extrusion Line

Name: HighSpeed LAN Cable Extrusion Line φ65φ40 Tandem Extrusion Line
Brand: Wirecan
Price: 1 USD

High-Speed LAN Cable Extrusion Line | φ65+φ40 Tandem Extrusion Line Manufactures

Brand Name : Wirecan

Model Number : 65+40

Certification : CE

Place of Origin : china

MOQ : 1 Set

Delivery Time : 30 works day

Raw Material : copper wire

Bobbin Size : 8inch

Wire Material : PVC Silicone

Suitable Material : Copper,aluminium wire

Inlet Diameter : 9.5mm

Service : 1 year guarantee

Finished Wire Range : Max.4

Insulation : PVC,PP,LDPE,TPU

Advantage : wire and cable coiling machines

Suit For : copper stranding

Coil Inside Diameter : 130mm

Control Box : International standard

Power Supply : 380V/50Hz

Drawing Speed : 24meter Wire Breakdown Drawing Machine

Conductor : copper wire

Contact Now

Discover the φ65+φ40 Tandem Extrusion Line, a cutting-edge high-efficiency LAN cable production solution. Designed and manufactured by Dongguan Wirecan, this advanced extrusion system is tailored for CAT5 and CAT6 network cable manufacturing, ensuring precision, stability, and high productivity.

Key Features:

1. High-Precision Insulation Extrusion - Ensures uniform insulation thickness for superior cable performance
2. PLC Intelligent Control System - Fully automated for real-time monitoring and production stability
3. High-Speed Production - Capable of producing cables at optimal efficiency for large-scale manufacturing
4. Advanced Quality Control - In-line measurement of eccentricity, diameter, and insulation thickness
5. Versatile Material Compatibility - Supports PVC, PE, XLPE, and LSZH insulation materials

Why Choose Our Extrusion Line?

Optimized Energy Efficiency - Reduces power consumption while maximizing output
Customizable Configurations - Adjustable settings to meet different cable specifications
Robust & Durable Design - Ensures long-term operation with minimal maintenance
Proven Industry Performance - Successfully implemented in multiple LAN cable manufacturing plants

High-Speed φ65+φ40 Tandem Extrusion Line for LAN Cable Production | Dongguan Wirecan

Production Line Components:

Component	Description
Pay-Off Unit	Holds and feeds the copper conductor into the extrusion line
Preheater	Heats the conductor to improve insulation adhesion
Extruder (φ65+φ40)	Dual-layer tandem extrusion for precise insulation
Cooling Water Tank	Rapidly cools extruded cables for dimensional stability
Diameter & Eccentricity Tester	Monitors and ensures uniform insulation thickness
Spark Tester	Detects insulation defects and ensures electrical integrity
Tension Control System	Maintains consistent cable feeding speed
Capstan Unit	Provides pulling force to move the cable through the line
Take-Up Unit	Collects the finished cable onto reels for easy handling

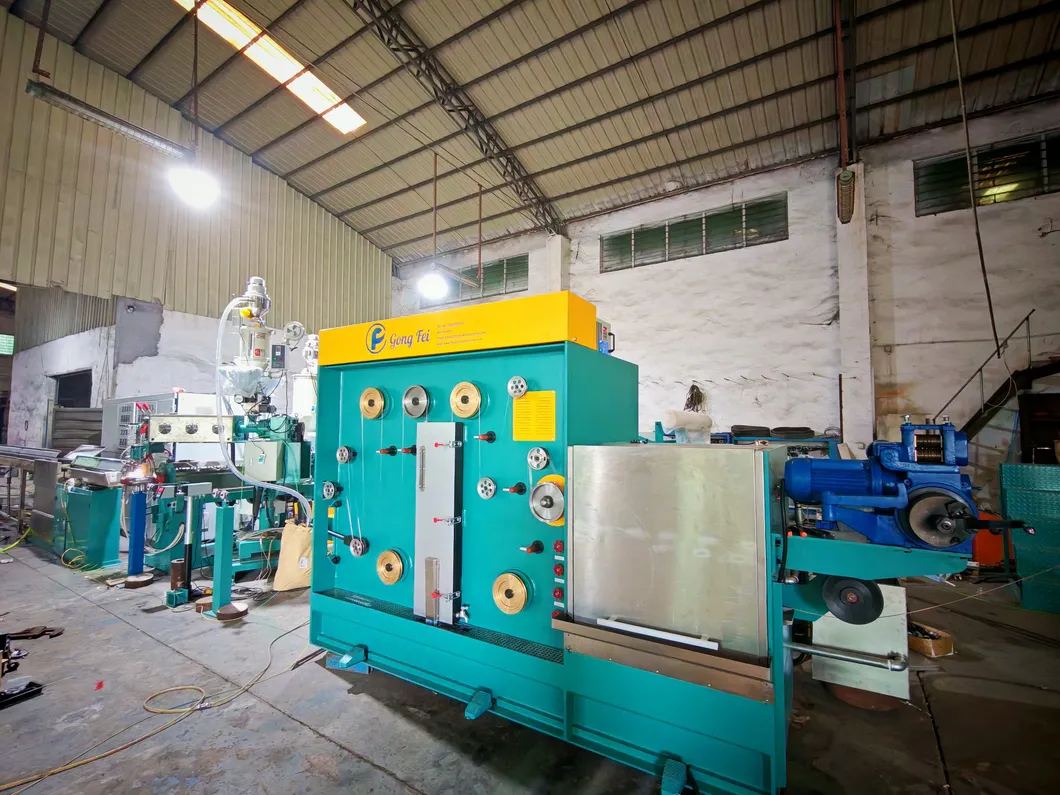

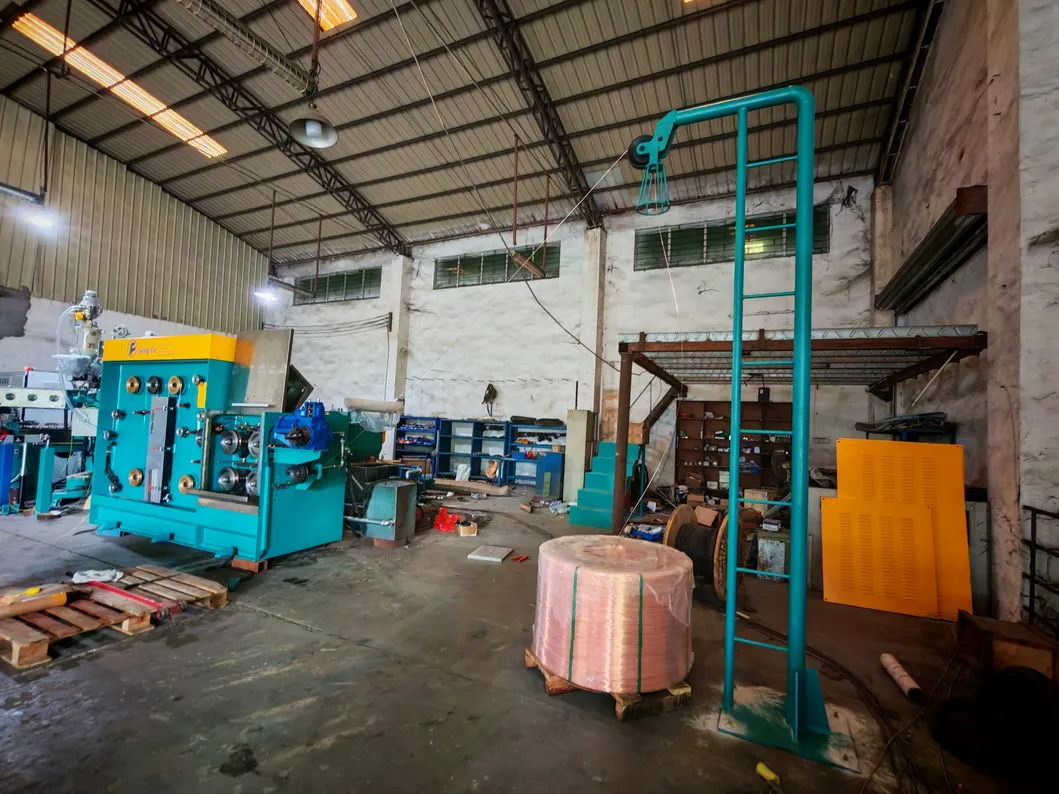

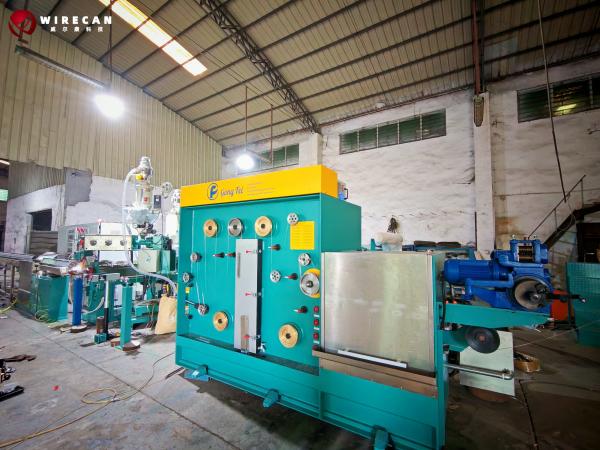

High-Speed LAN Cable Extrusion Line | φ65+φ40 Tandem Extrusion Line Images
